SALGINA
2.5mm Volar Distal Radius System

SALGINA

2.5mm Volar Distal Radius System

THE SALGINA 2.5MM VOLAR DISTAL RADIUS PLATE

1

2

3

4

K-WIRE HOLES

For guidance in screw placement and preliminary plate placement

RADIAL STYLOID SCREWS

With adequately angulated nominal directions assisting the ideal placement of the radial styloid screw placement

TIC HOLES

Variable angle locking holes (15° angulation)

OBLONG HOLE

Allowing precise positioning of the plate

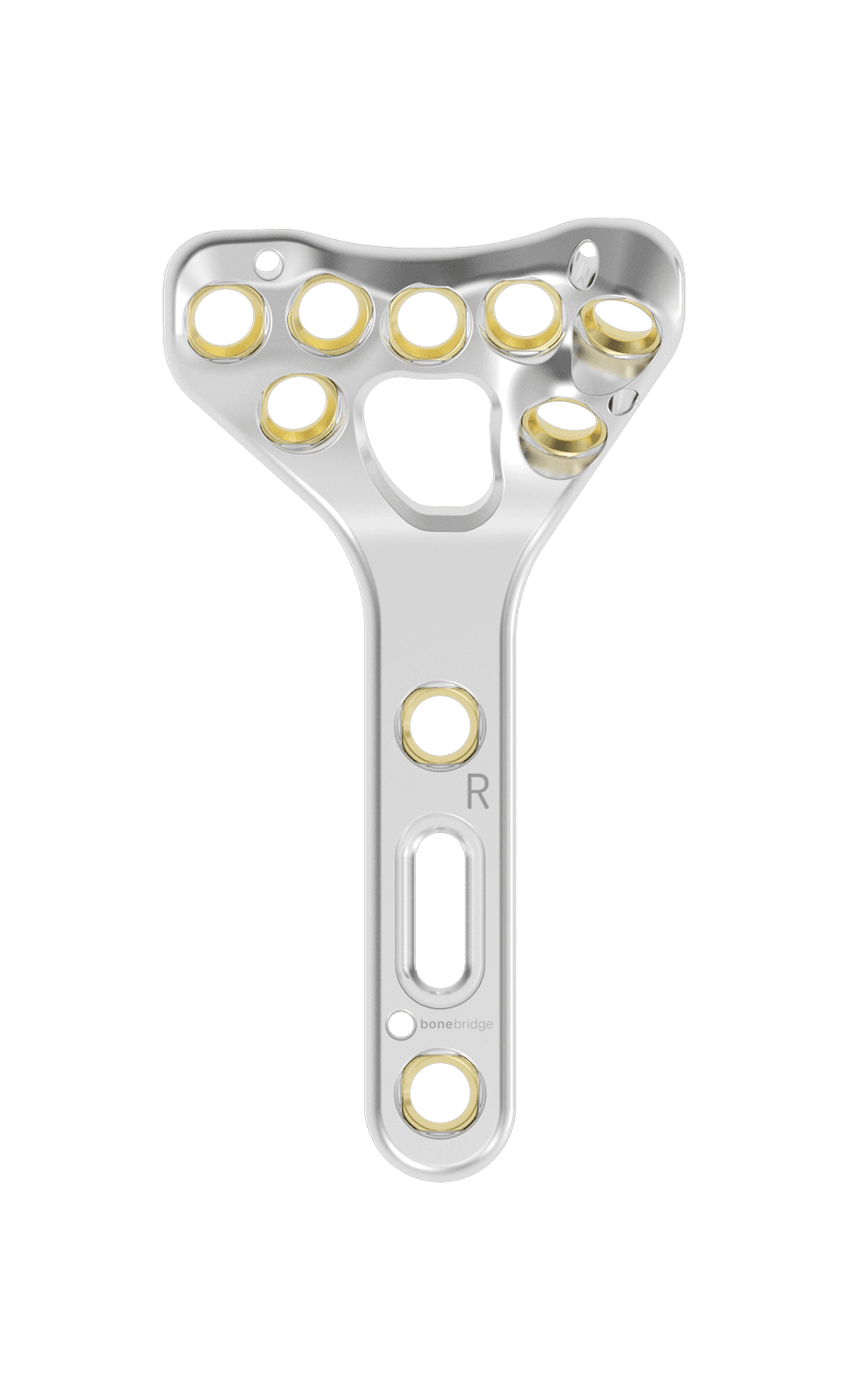

THE STANDARD “WORKHORSE” SALGINA

3 Hole | 51mm length | 23mm width

3 Hole | 51mm length | 23mm width

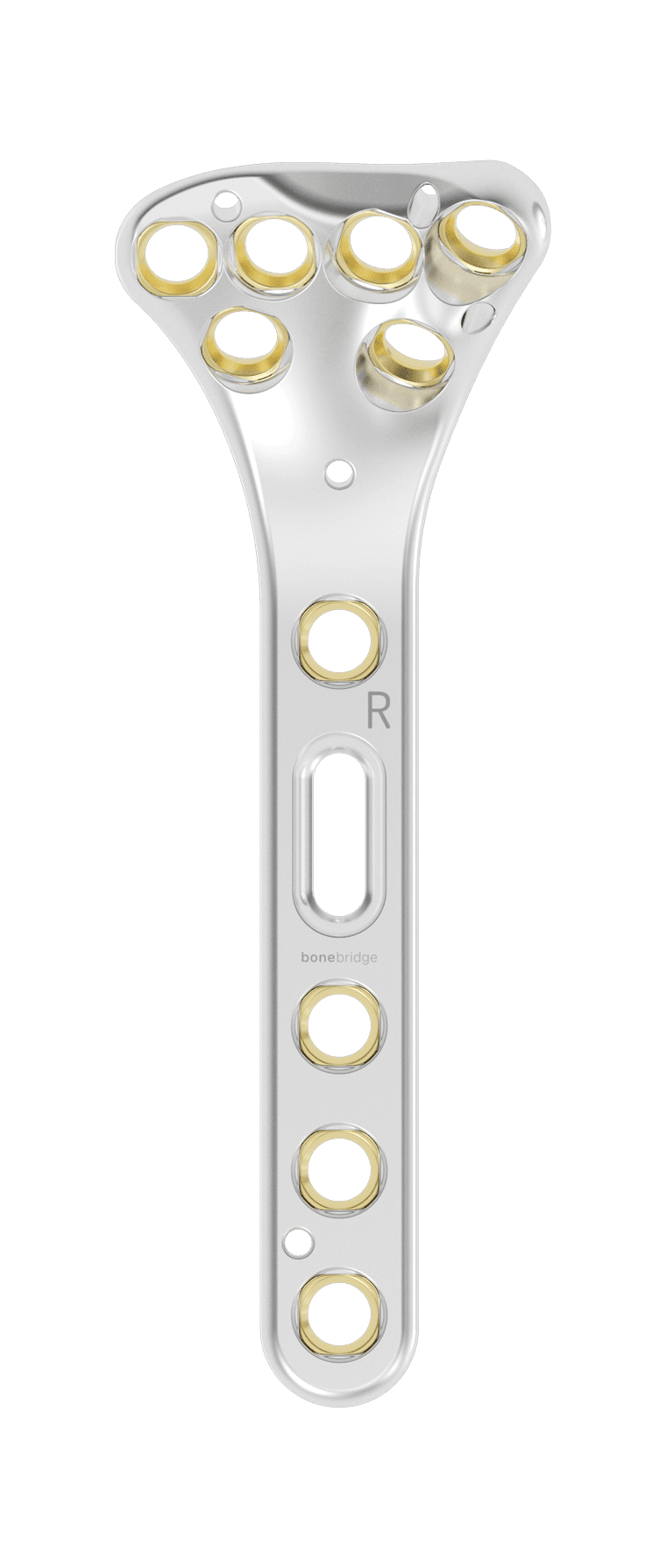

5 Hole | 67mm length | 23mm width

5 Hole | 67mm length | 23mm width

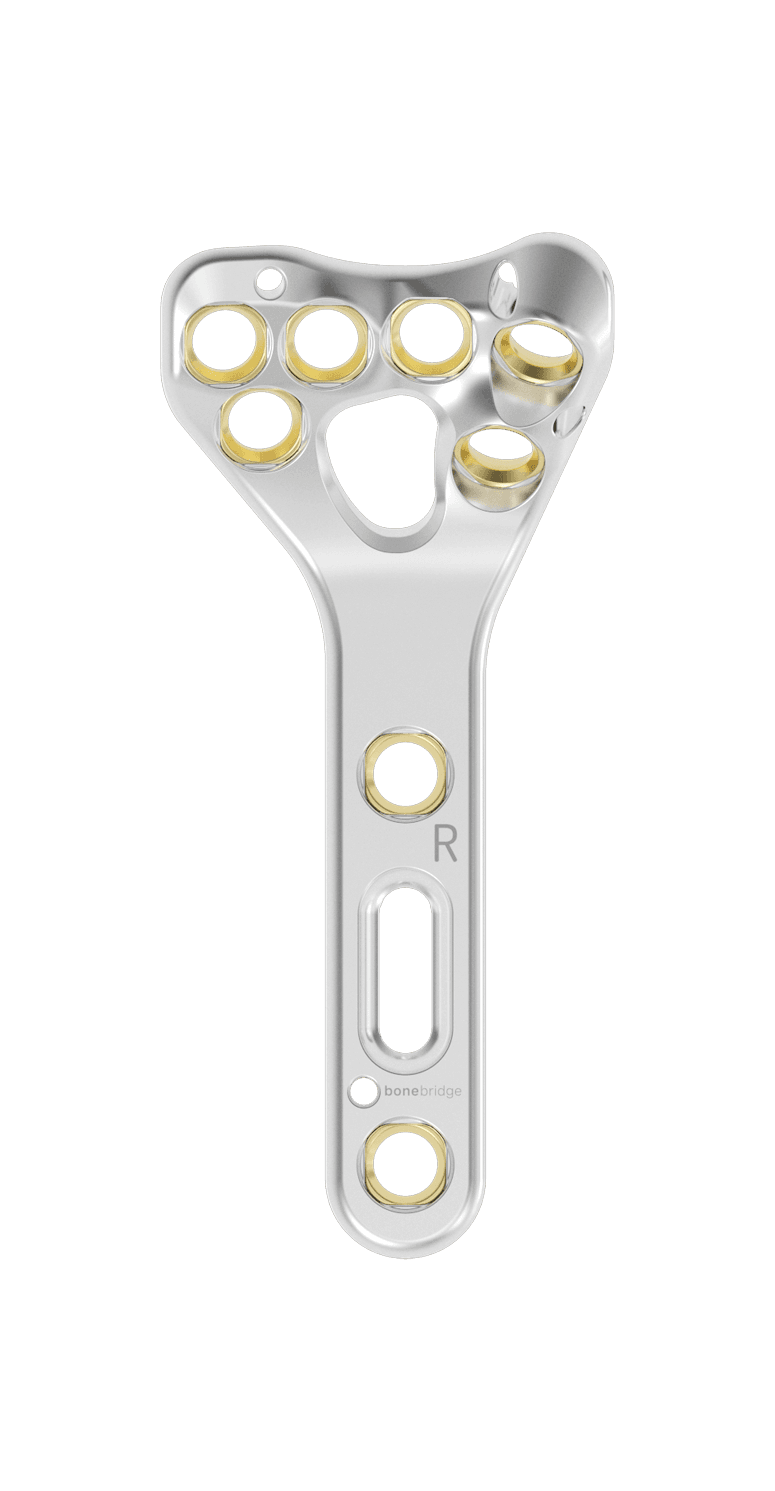

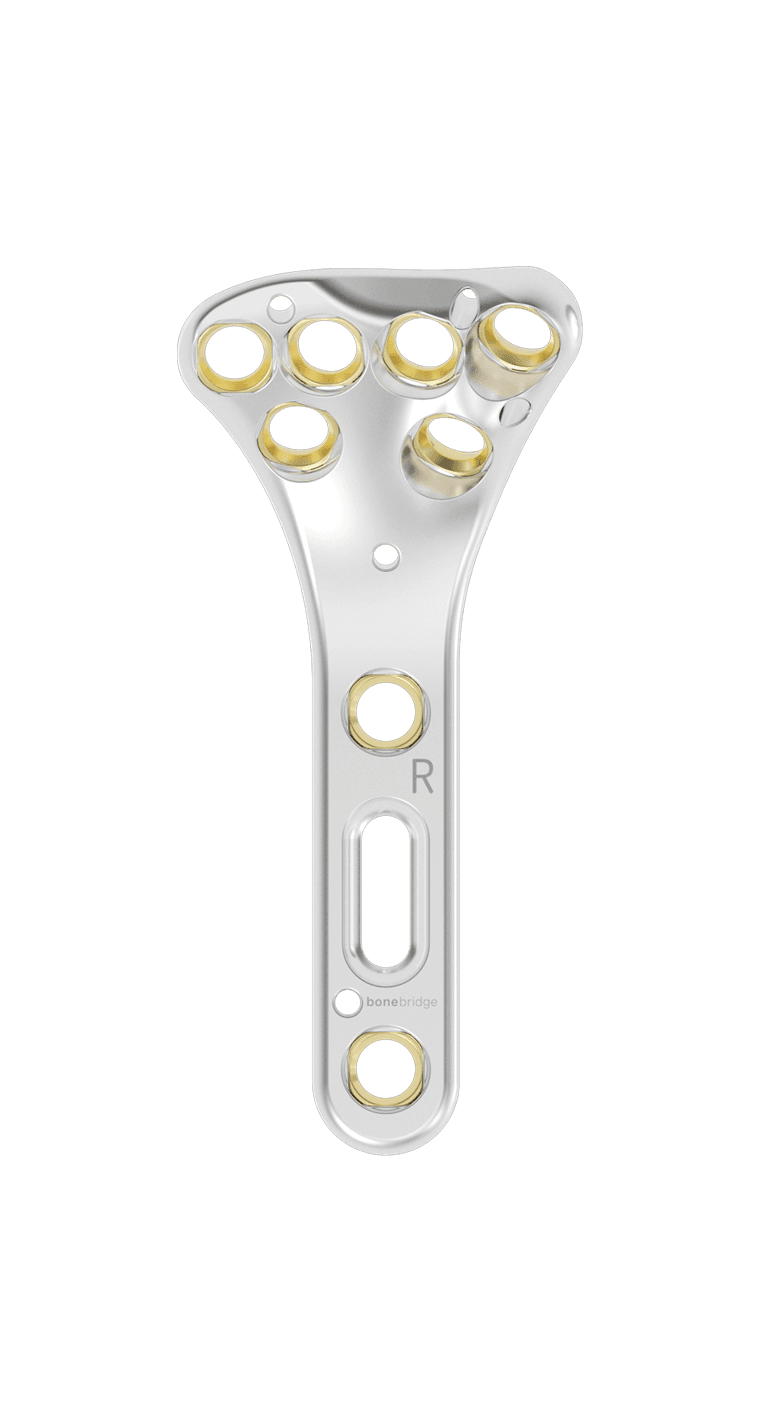

THE DISTAL SALGINA

3 Hole | 54mm length | 24mm width

3 Hole | 54mm length | 24mm width

3 Hole | 54mm length | 29mm width

3 Hole | 54mm length | 29mm width

THE DORSAL SALGINA

6 Hole | 63mm length | 38mm width

6 Hole | 63mm length | 38mm width

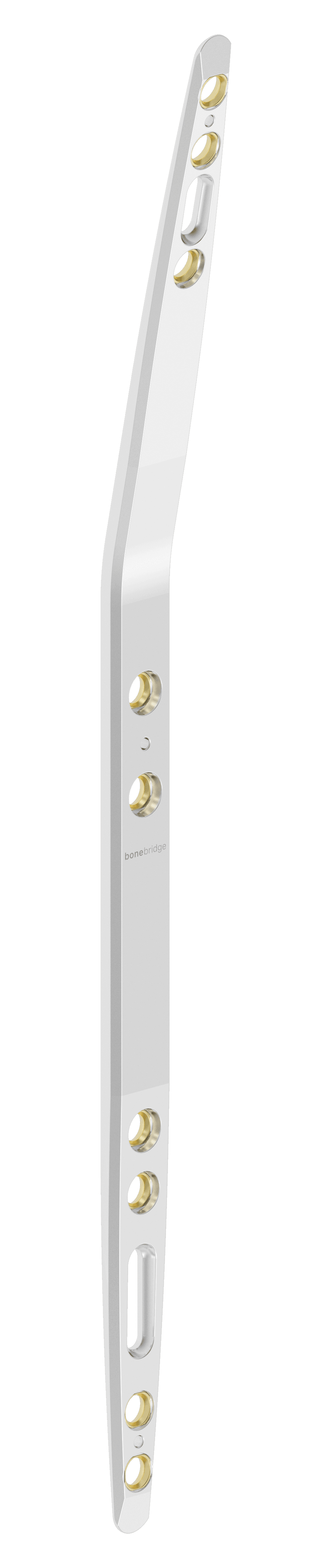

THE SALGINA WRIST SPANNING PLATE

195mm length | 10mm width

195mm length | 10mm width

“The SALGINA Distal Radius Plate is an outstanding solution to cover the vast majority of distal radius fractures in a trauma center like ours. The plate allows for optimal placement of all its distal screws in the ulnar and radial column, so not only does it serve as our workhorse plate, but its simplicity and minimised instrumentation also make it an excellent choice for our OR staff.”

Beat Moor, MD

Chair Department of Orthopaedics,

Hôpitaux du Valais, Sion/Martigny, Switzerland

salgina bridge

THE WORKHORSE IN THE DISTAL RADIUS

src

The standard SALGINA Volar Distal Radius Plate is designed to handle a vast variety of different fracture patterns and is designed to become the true “workhorse” for everyday fracture care.

FOR JUXTA-ARTICULAR PLACEMENT

src

The distal SALGINA Volar Distal Radius Plate contours closely to the volar rim, ensuring an anatomical fit and providing a maximum of fixation points to account for the more distal and complex intra-articular patterns.

VERSATILE COMPANIONS

src

The ideal companions for our volar plates: The SALGINA Dorsal Distal Radius Plate, a versatile L / T or hockey-type plate that allows for various plate positionings, and the SALGINA Wrist Spanning Plate for internal distraction.

THE SALGINA 2.5MM INSTRUMENT SET

TORQUE LIMITING SCREWDRIVER HANDLE 2.5MMEXCHANGEABLE BIT 2.5MMSCREWDRIVERDRILL BIT 1.9MMK-WIRE 1.4MM, 150MMDEPTH GAUGE 2.5MMDRILL GUIDE 2.5MMSALGINA TRIAL IMPLANT
TORQUE LIMITING SCREWDRIVER HANDLE 2.5MM

TORQUE LIMITING SCREWDRIVER HANDLE 2.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of VA Locking Screws 2.5mm.

2.5MM SCREWS

screw
screw
